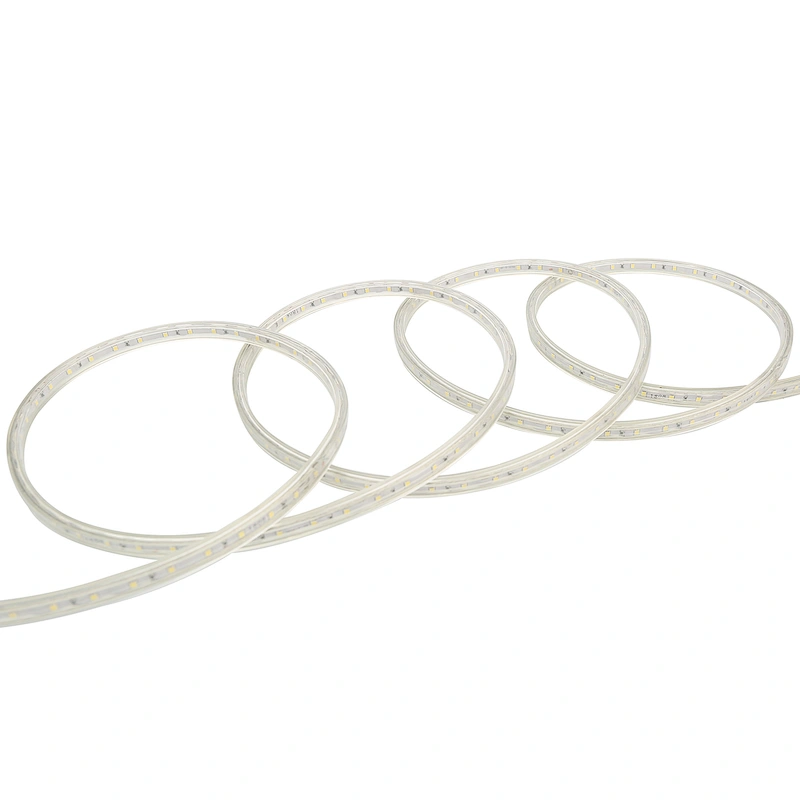

AC100V AC230V | Dual-Side LED Strip Light On Reel Hoist Construction Applied Indicator Light
SMD2835 Series - Temporary Lighting Solution (LED Work Light for Construction Site Light)
With Linear Strip Light, the task of mounting temporary Construction lighting is made simple
Dual Side LED Strip Light Lighting Applied LED Light Features:
1. 100V Dual-Side LED Strip light or 230V Dual-Side LED Strip Light ready to be connected directly to AC230V/100V.
2. Quick and easy install. Plug And Play Strip Light.
3. Parallel wiring to each LED ensures that if one LED goes out,the rest of the strip will continue to be illuminated so that the work can continue.
4. Rough and robust built enclosure made for tough conditions, Building Site Lights, IK10.

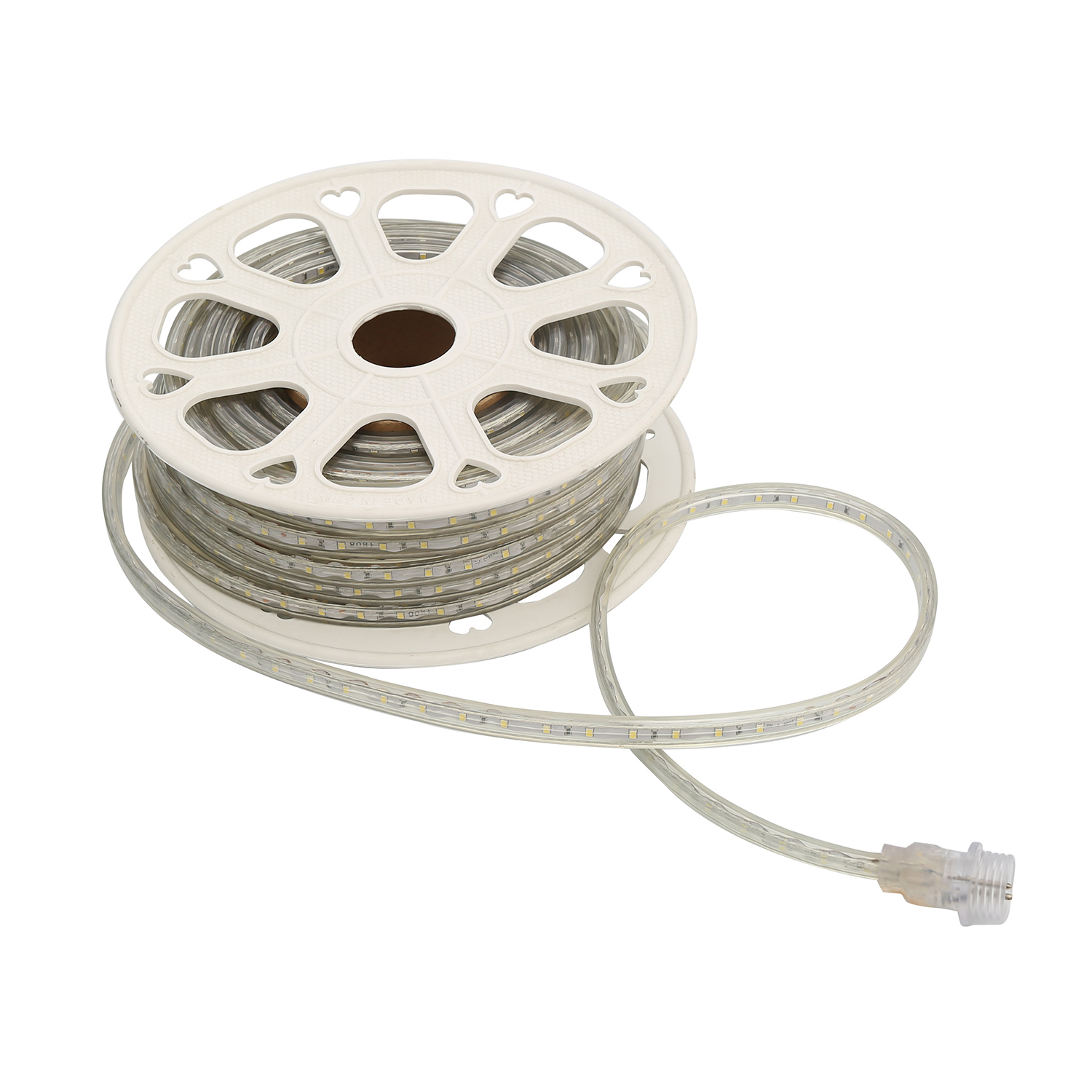

5. Powerful LED Strip all packed up on a portable reel drum that makes it easy to handle and store.
Specification
Voltage: | 230V~ 50/60Hz / AC100-110V 50/60Hz |
LED Color: | 3000K,4000K,5000K,6500K |

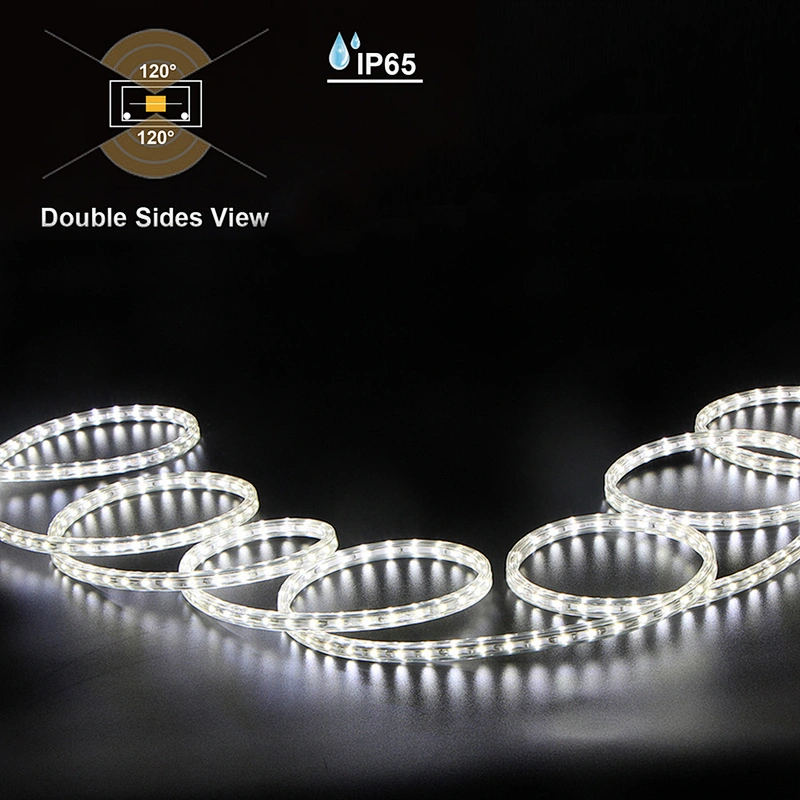

Beam Angle: | 120° |
LED Package: | SMD2835 |
CRI: | Ra80+ |
Luminous flux: | 400 lm/M |
LED Spacing: | 2X60 LEDS/M |
Wattage | 7.5W/M |
Operation Temp.: | -20°C ~ +45°C |
Storage Temp: | -10°C ~ +30°C |
Housing Material: | PVC |
Power Factor: | >0.95 |
Wire gauge: | 20 AWG |
IK Rating | IK10 |
Rating | Indoor/Outdoor; IP65 |
Protection Class: | Class II |
NOTE: The luminous flux and wattage is allowed to float with ± 10%

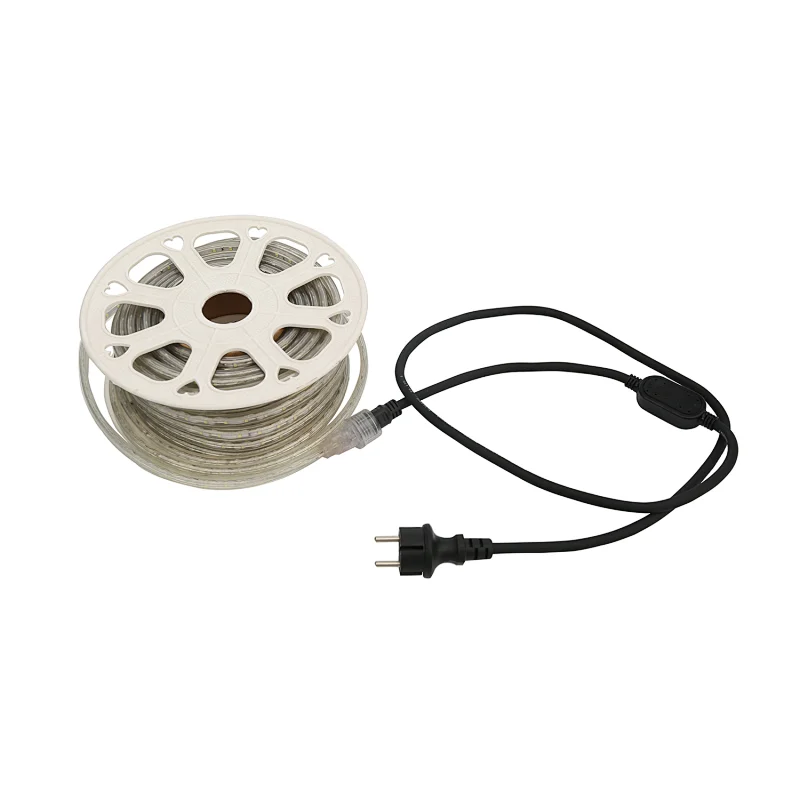

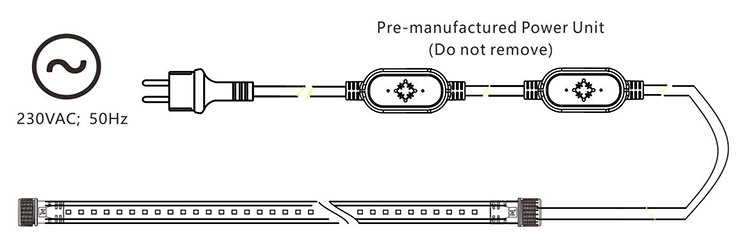

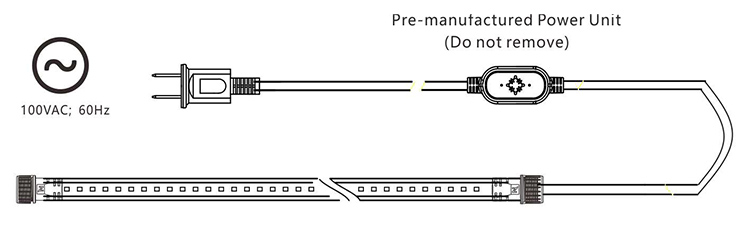

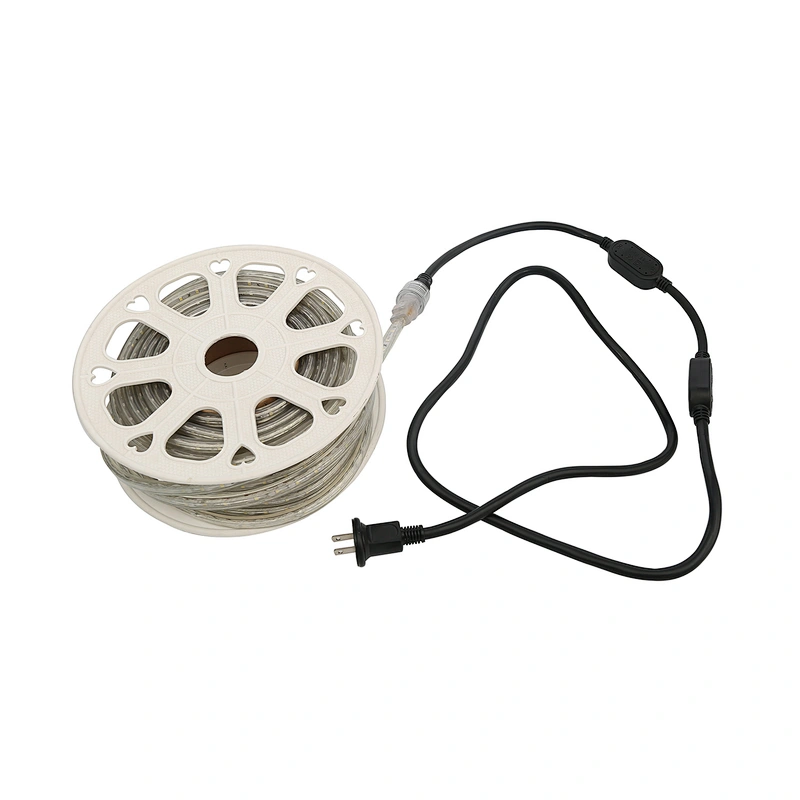

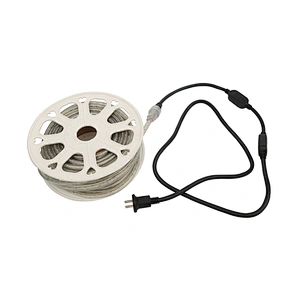

Dual-side LED Strip Light Kit Package

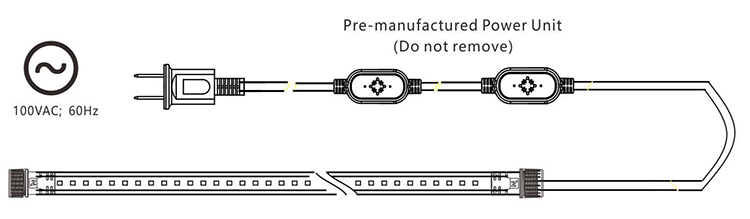

MAX=25M When connect to AC100V
MAX=50M When connect to AC100V

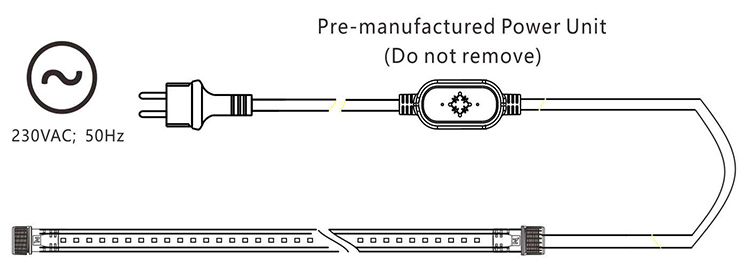

MAX=50M When connect to AC230V MAX=100M When connect to AC230V

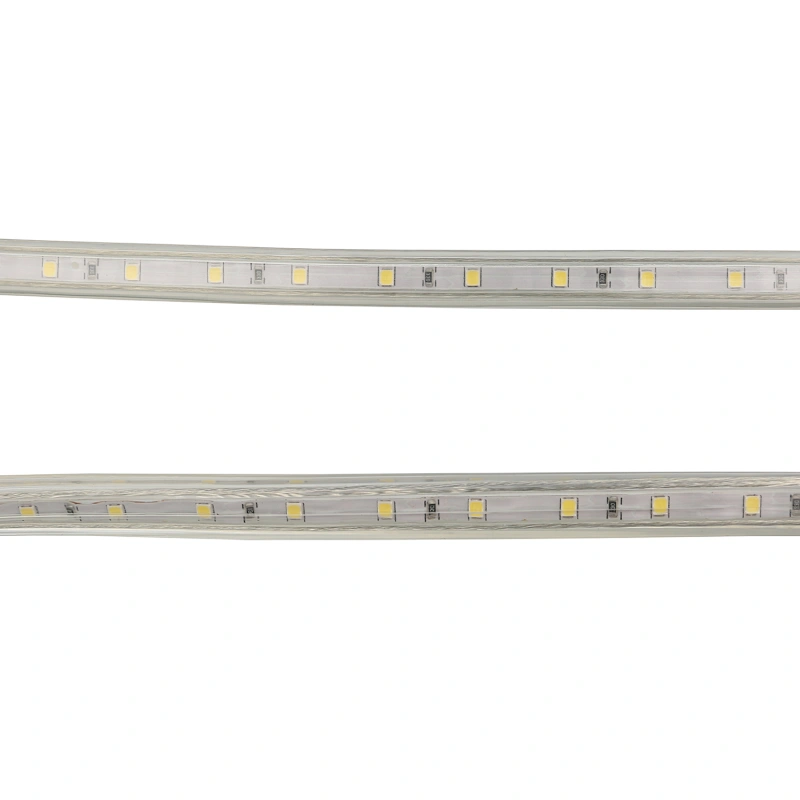

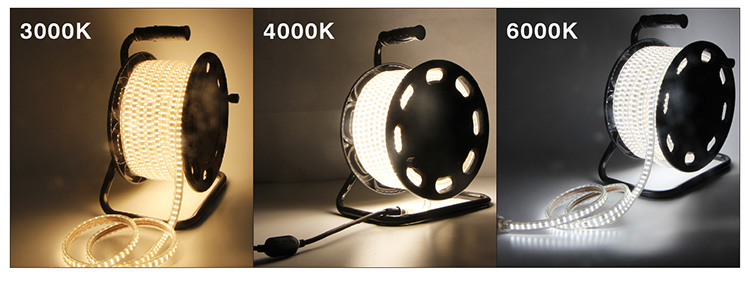

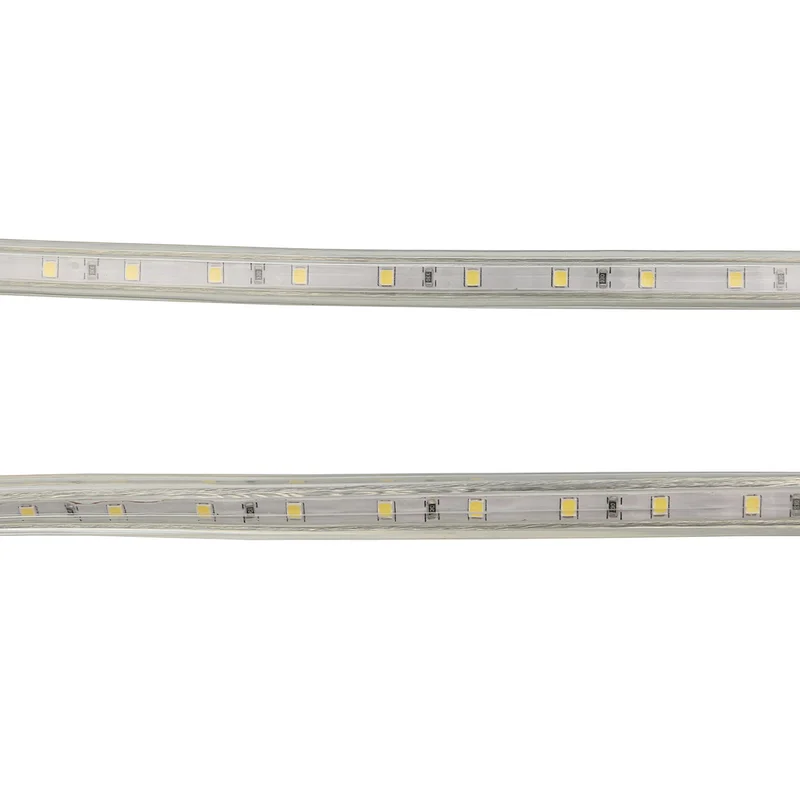

Dual Side Light Strip different color temp. for choosed.

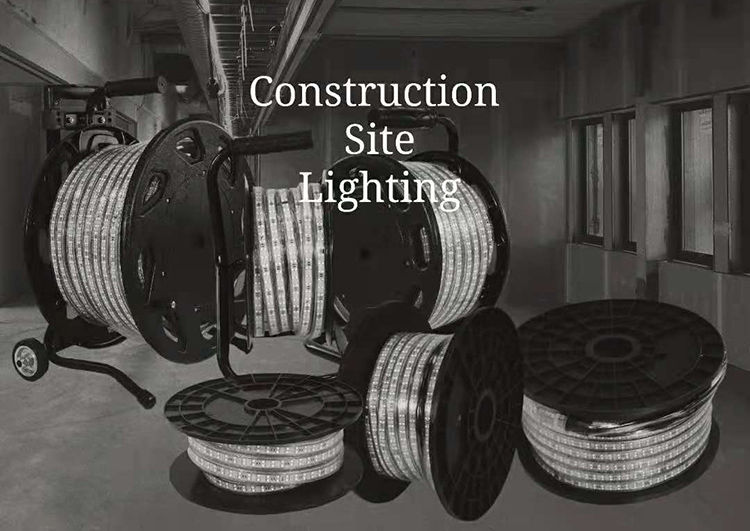

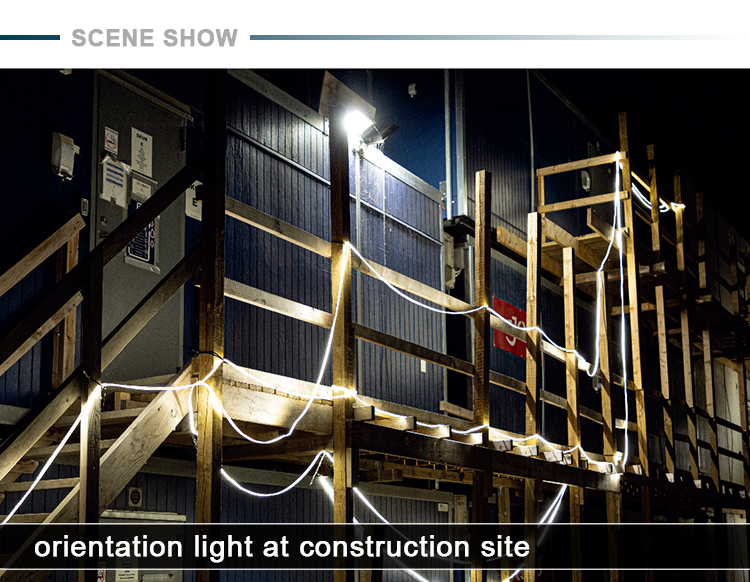

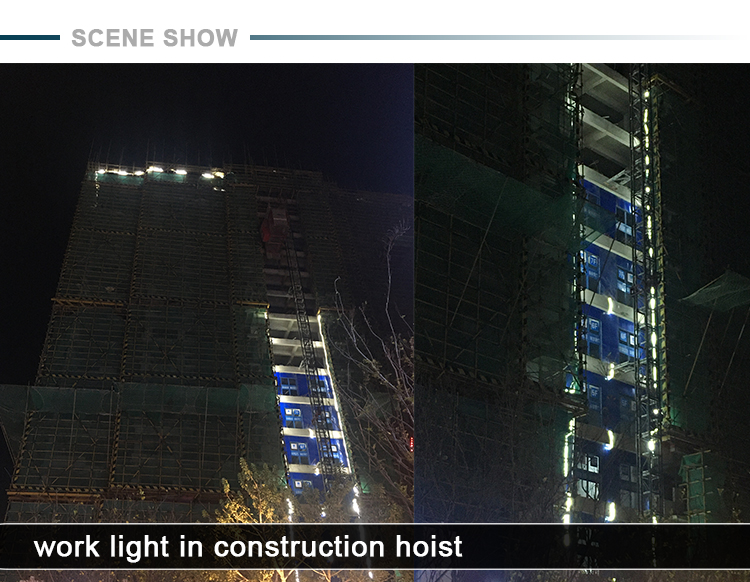

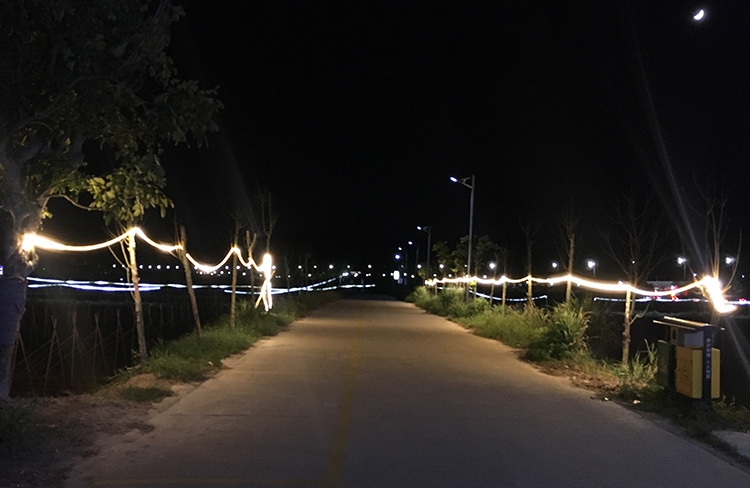

Temporary Construction Lighting LED dual side Light Strip Applications

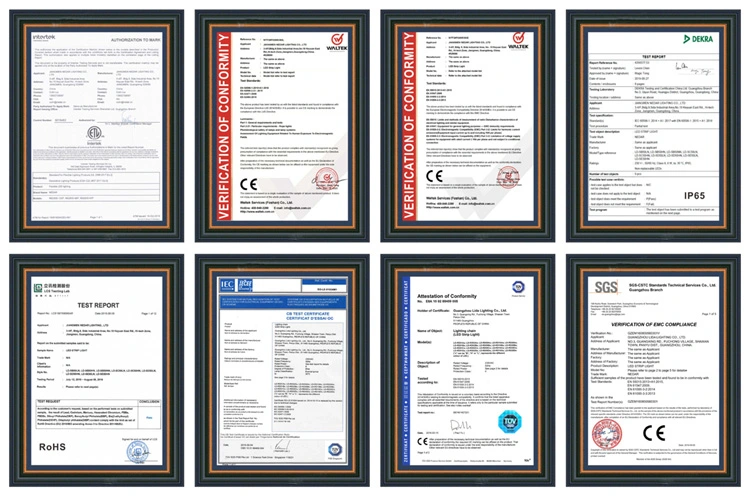

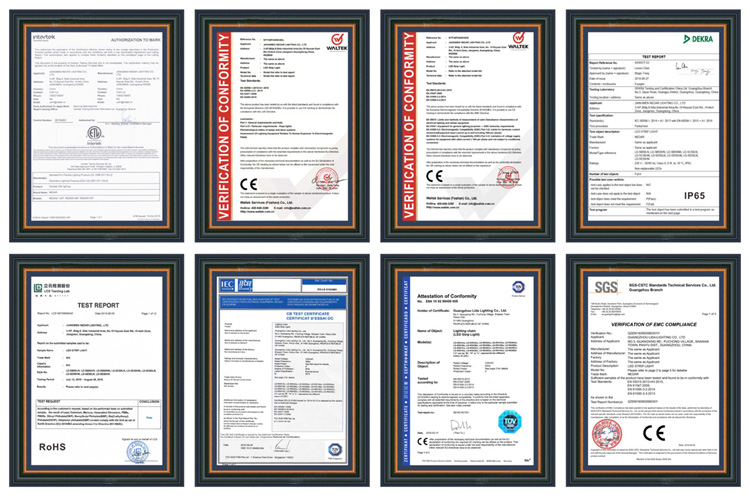

Dual Side LED Strip Light as Work Light Certifications (more details)

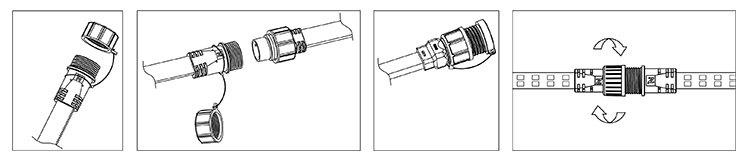

DIY Connector for Dual Side LED Strip light

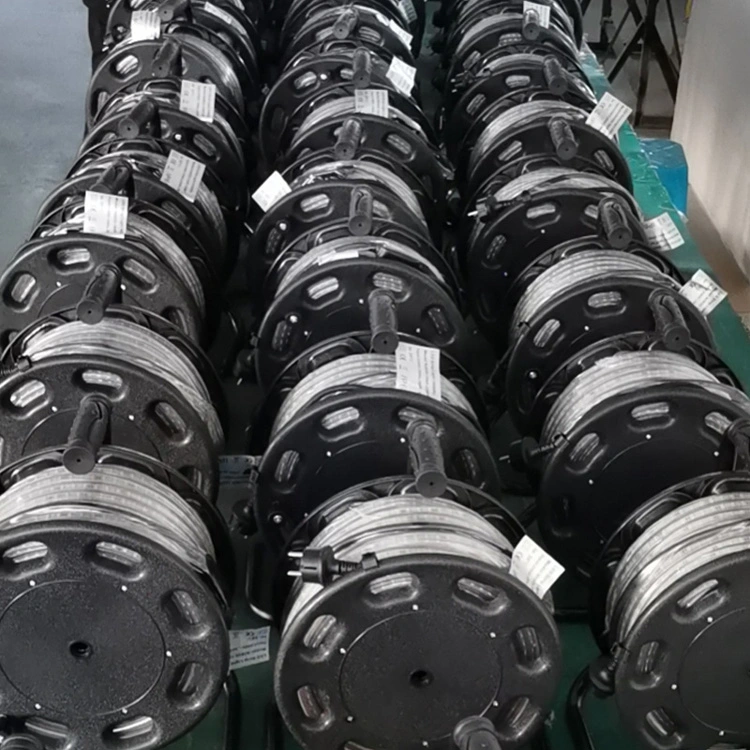

Construction Site Light Wholesale
Nedar Video Show how to coil up the Portable Outdoor Light Strip 25M
LED Strip Factory Warranty
Nedar products are guaranteed for 3 years. The guarantee condition is any performance failure occurs within warranty period caused by non-human damage. There is no charge for replacing or repairing defective products.
If the quality problems of the returned products are caused by our company, we will replace or repair the defective products; if customers could not accept the solution for replacing or repairing the defective products, the payment of defective products will be refund to buyer's bank account or credit buyer's account in Nedar for future orders.
Nedar will not reimburse or pay for unexpected costs or expenses, including without limitation labor or other costs associated with removal or reinstallation of the product, even if it is ultimately deemed to be defective.
Exceptions:
1) Product had been modified by the user.
2) Product was not installed or maintained according to manual or specification accompanied.
3) Product was subject to unusual physical or electrical stress, misuse, or negligence.
4) Product was non-defective or product defect was not related to Nedar product functionality, including third- party modifications.
5) Other damages caused after receipt of product by customer.
6) If returned product is found to be non-damaged, the product will be returned to customer, at customer's expense.
7) Updated July 01, 2020
Any return without authorization of Nedar will not be accepted.
