Model NO.
LD-SM25HN
Delivery:
FOB
Minimum order quantity:
10 sets
Supply Ability:
15000 sets / Month
Country of Origin:
Jiangmen,China
Stock Time:
10 Days
Quantity:

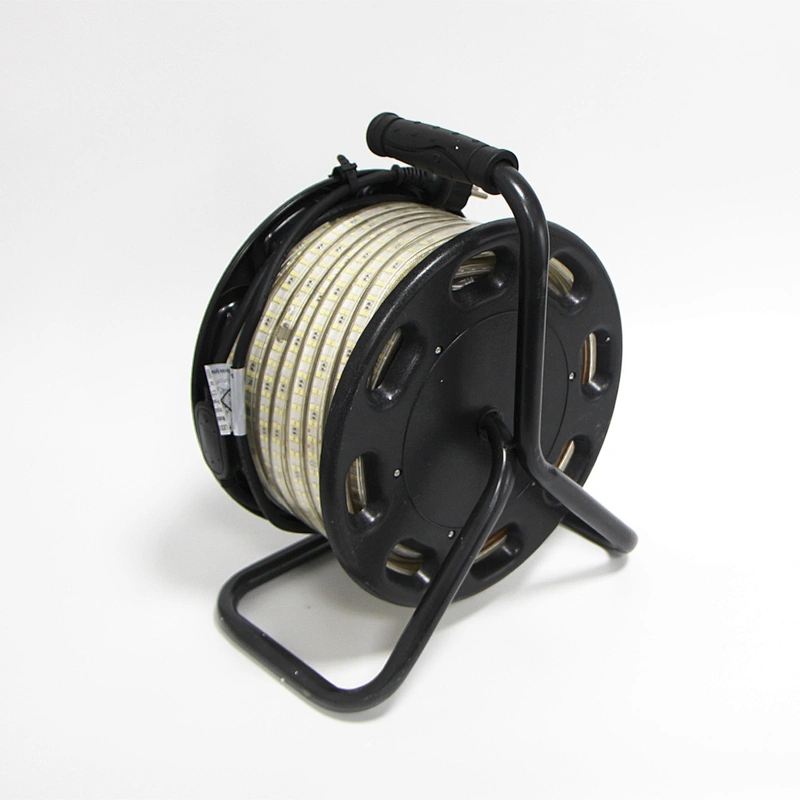

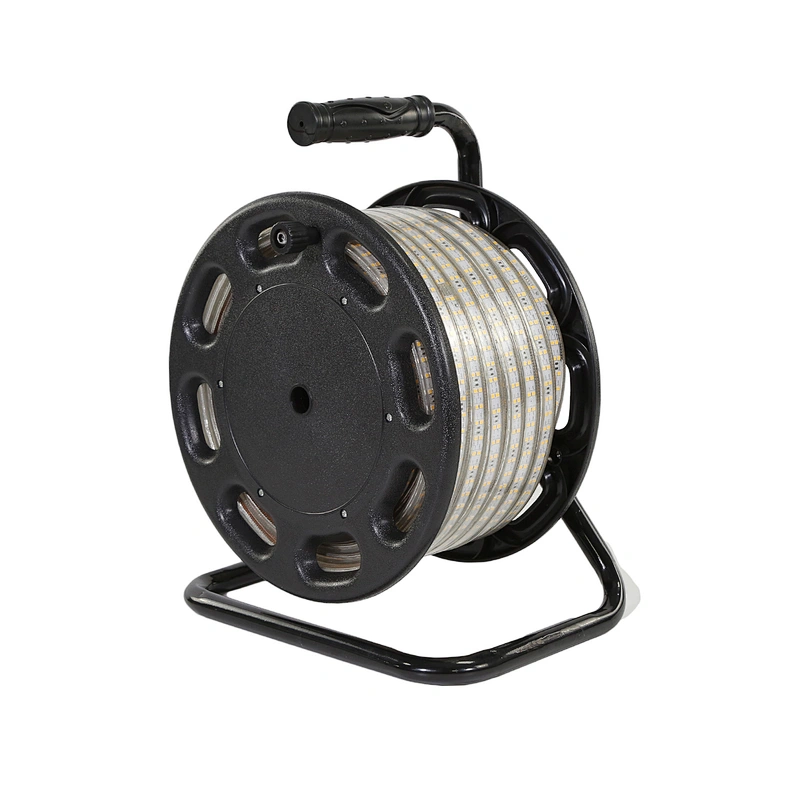

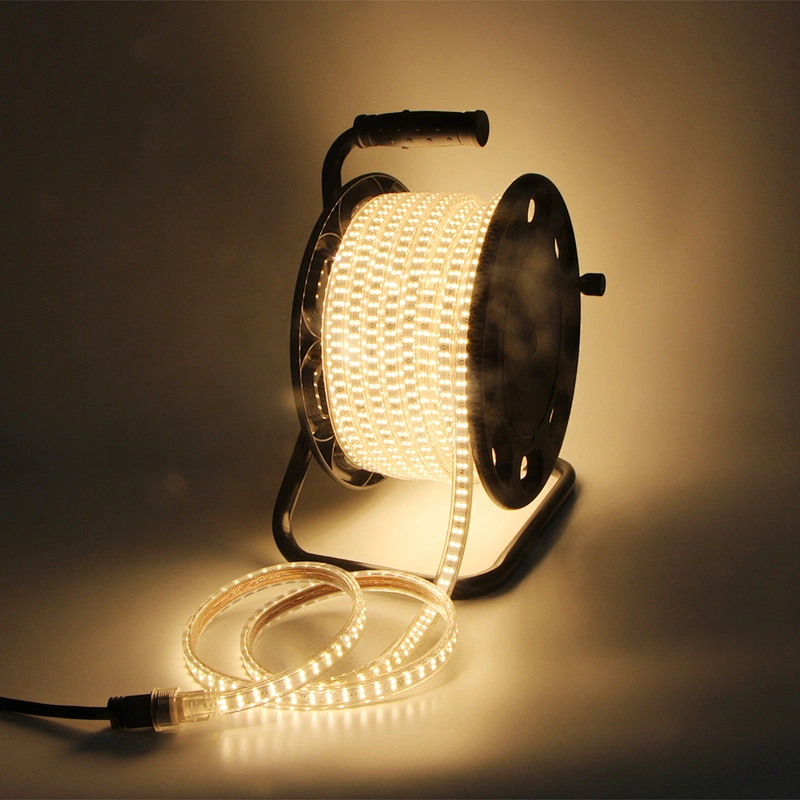

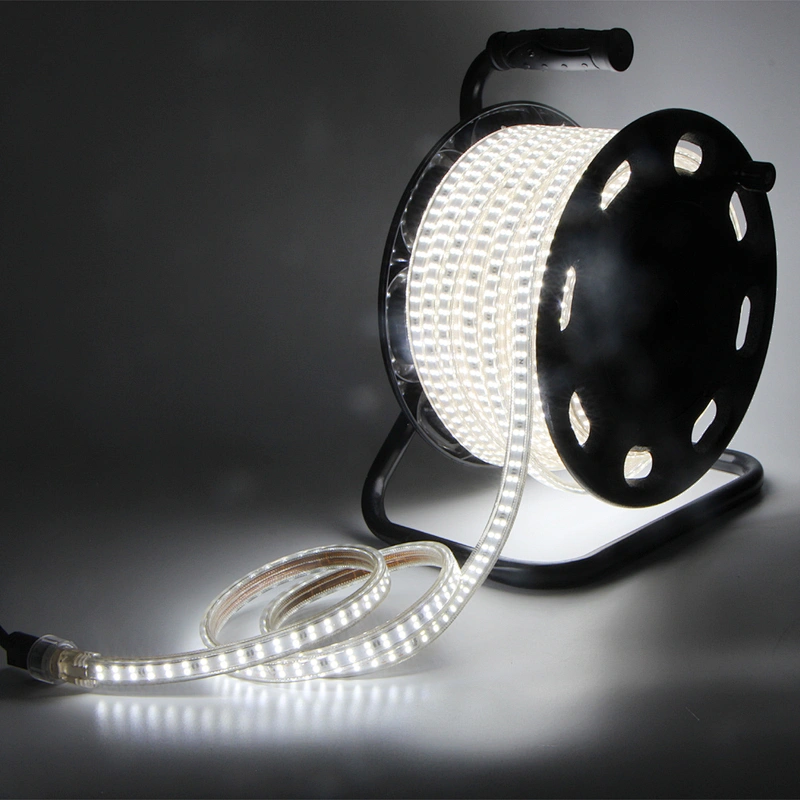

AC230V AC100V | LED Strip Light Kit 25m On Drum Hoist Construction Applied LED Light


SMD2835 Series - Temporary Lighting Solution (LED Work Light for Construction Site Light)

With Linear Strip Light, the task of mounting temporary Construction lighting is made simple


Hoist Construction Applied LED Light Features:

1. 25m of 230V LED Strip light or 110V LED Strip Light ready to be connected directly to 230V/110V.

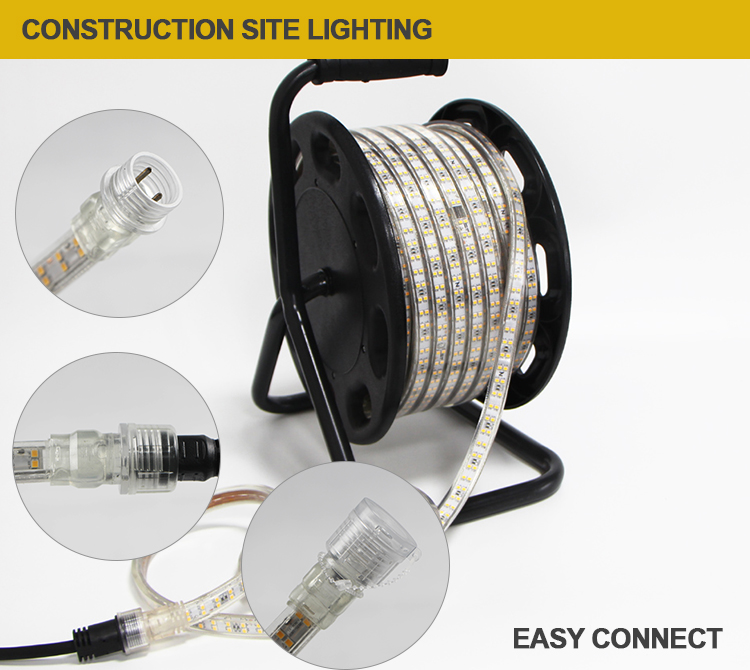

2. Quick and easy install. Plug And Play Strip Light.

3. Parallel wiring to each LED ensures that if one LED goes out,the rest of the strip will continue to be illuminated so that the work can continue.

4. Rough and robust built enclosure made for tough conditions, Building Site Lights.

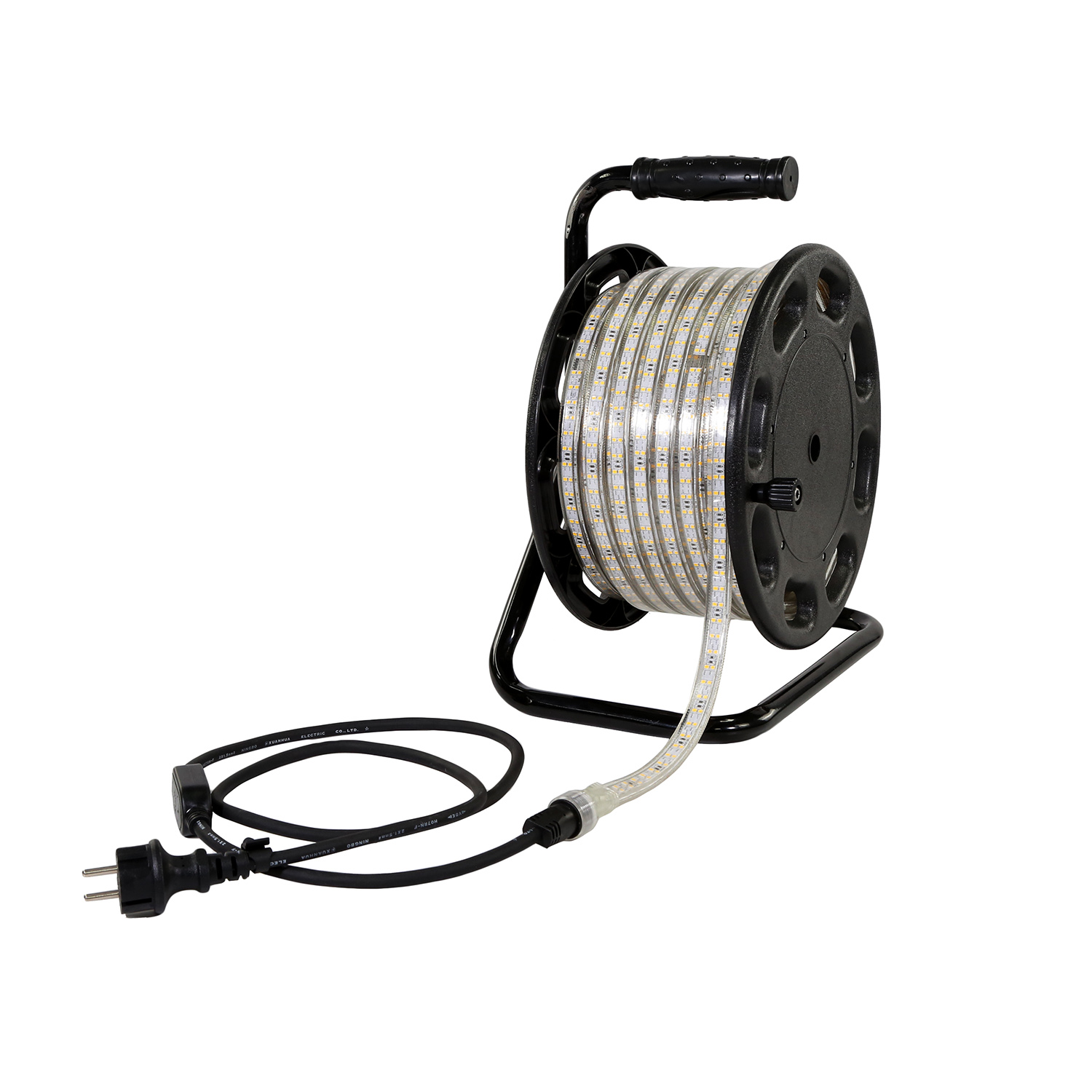

5. 25m Powerful LED Strip all packed up on a portable reel drum that makes it easy to handle and store.


Specification

Voltage:230V~ 50/60Hz  /  AC100-110V  50/60Hz
LED Color:3000K,4000K,6000K
Beam Angle:120°
LED Package:SMD2835
CRI:Ra80+

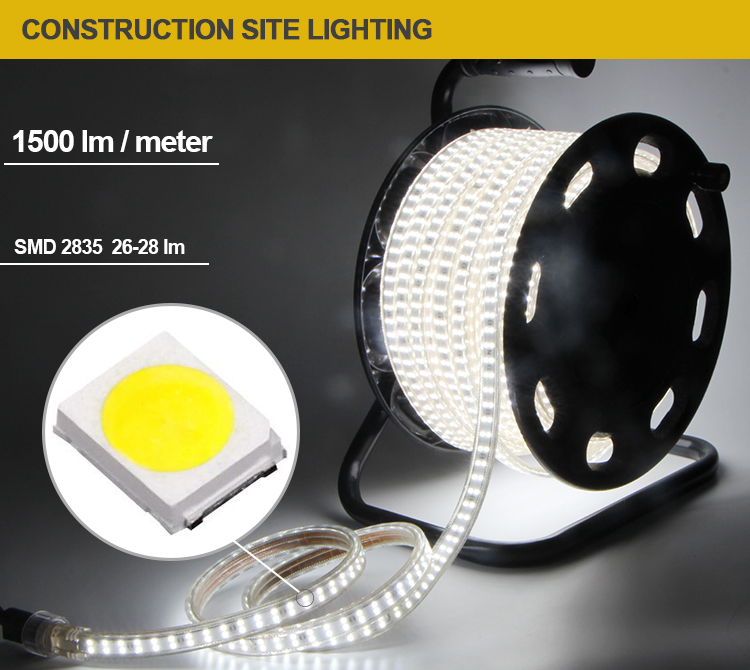

Luminous flux:1500 lm/M
LED Spacing:180 LEDS/M
Wattage12W/M
Operation Temp.: -20°C ~ +45°C
Storage Temp:-10°C ~ +30°C
Housing Material:PVC
Power Factor:>0.95
Wire gauge:20 AWG
LENGTH:25M
RatingIndoor/Outdoor; IP65
Protection Class: Class II

NOTE: The luminous flux and wattage is allowed to float with ± 10%

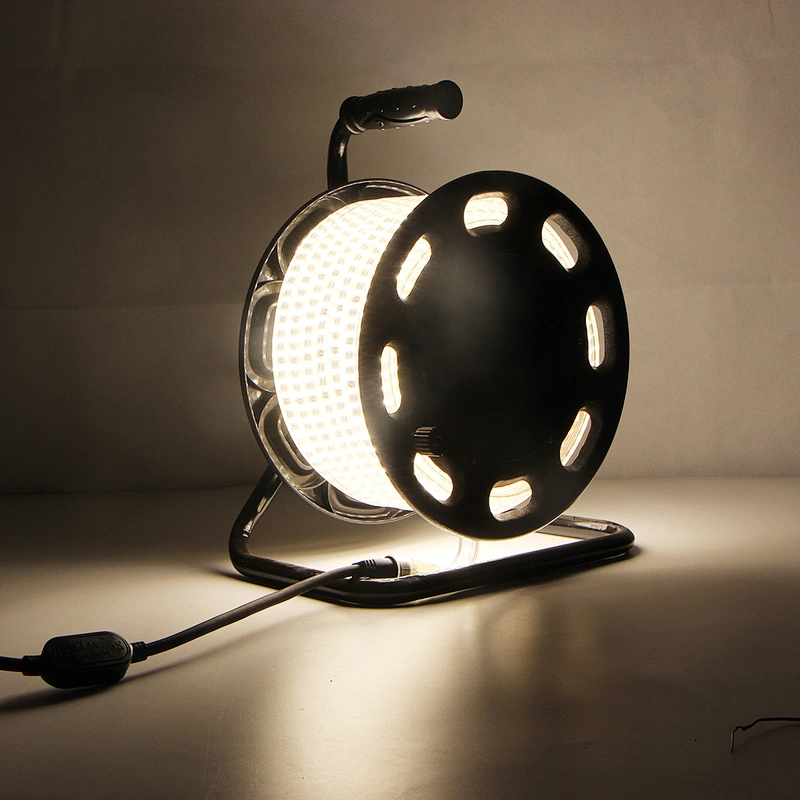

LED Work Light Details

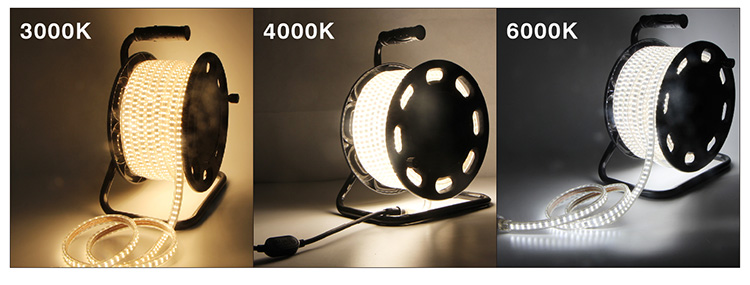

Job Site Light Strip different color temp. for choosed.

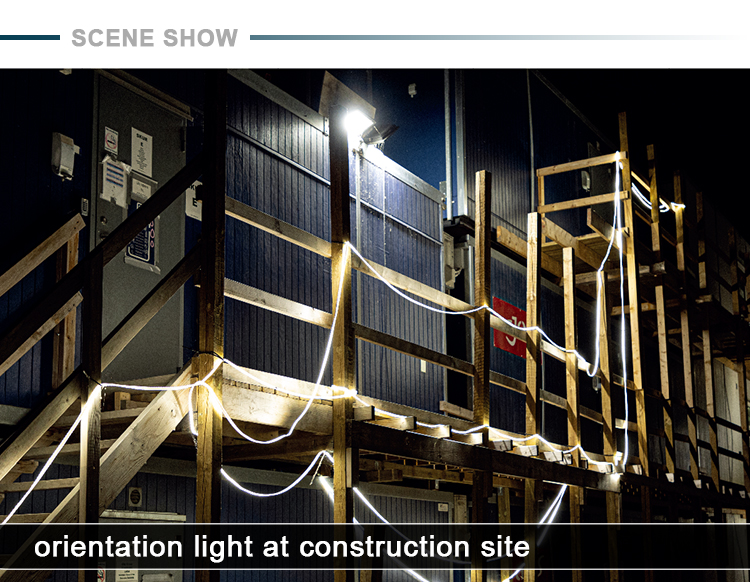

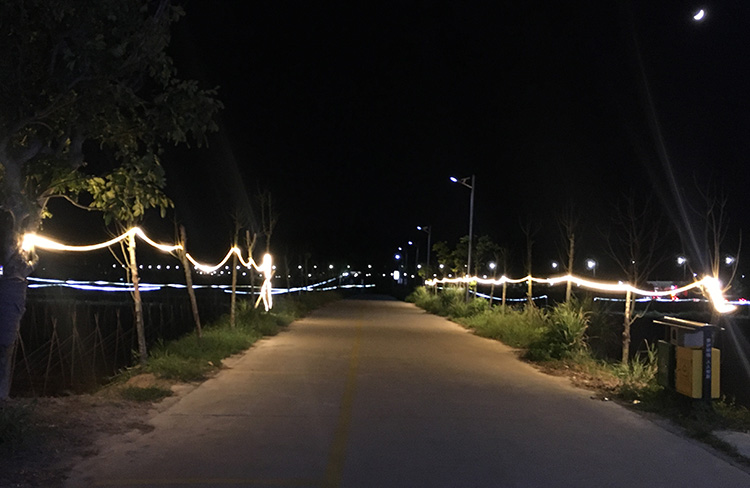

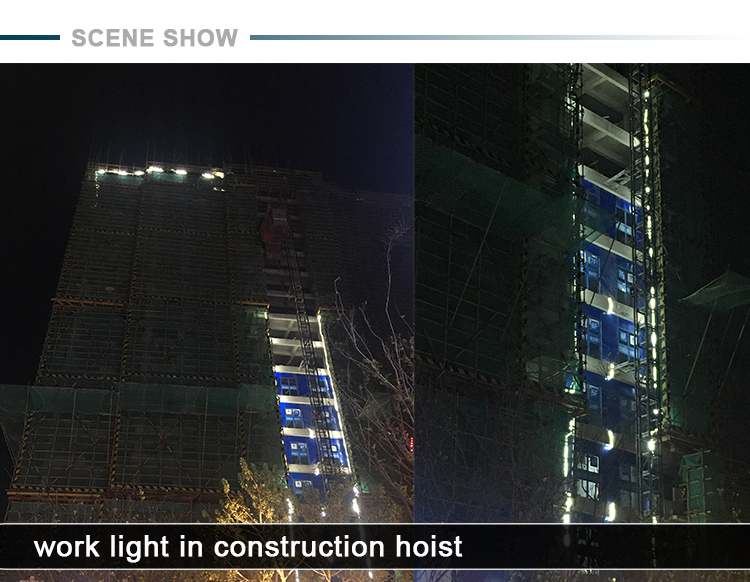

Temporary Construction Lighting LED Job Site Light Strip Applications

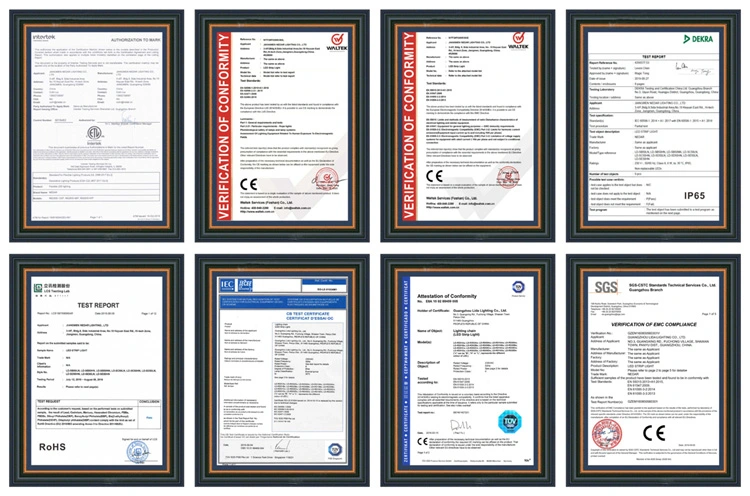

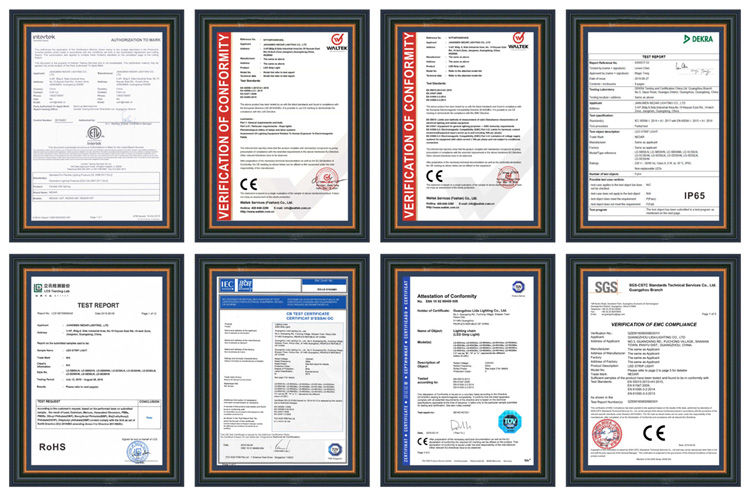

LED Strip Flex 25m Work Light Certifications (more details)

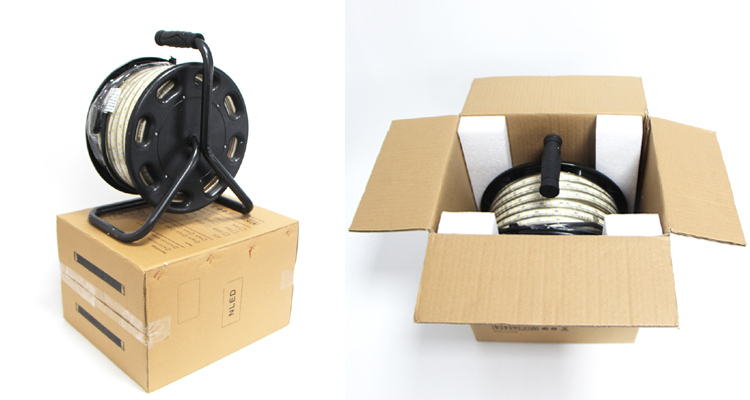

LED Strip Light Kit 25m Package and size Details

QtyMEASG.WN.W
1Set/CTN34X25.5X40CM6.5KG6.0KG
2Set/CTN56X36X44CM14KG13KG

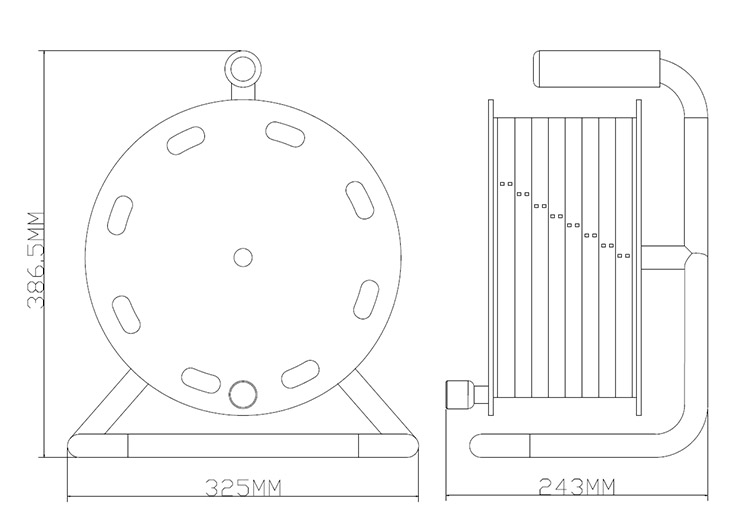

Size of the 25M strip light drum

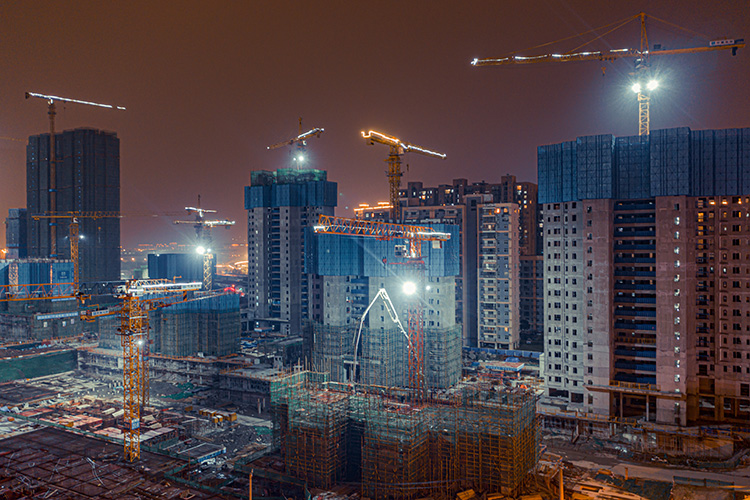

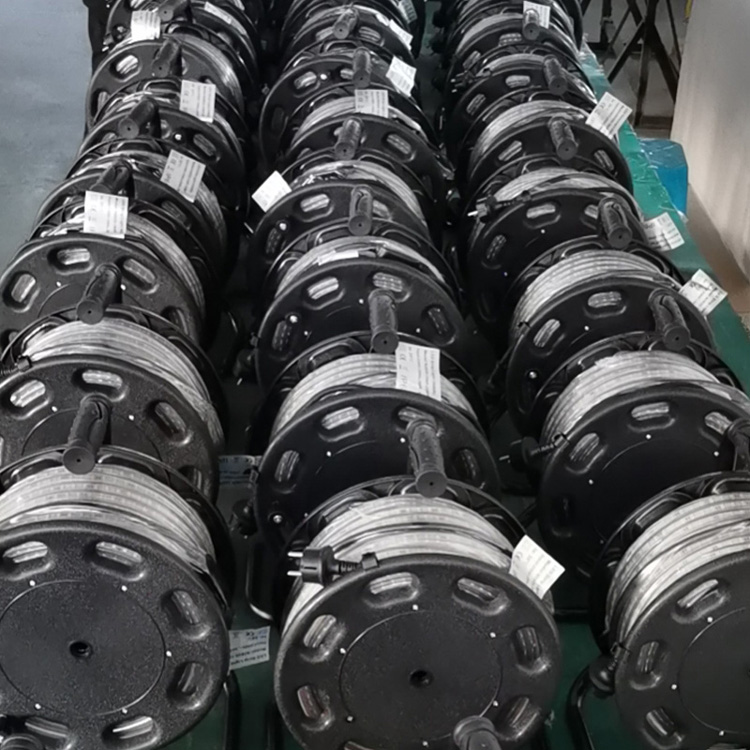

Construction Site Light Wholesale




Nedar Video Show how to coil up the Portable Outdoor Light Strip 25M






LED Strip Factory Warranty

Nedar products are guaranteed for 3 years. The guarantee condition is any performance failure occurs within warranty period caused by non-human damage. There is no charge for replacing or repairing defective products.
If the quality problems of the returned products are caused by our company, we will replace or repair the defective products; if customers could not accept the solution for replacing or repairing the defective products, the payment of defective products will be refund to buyer's bank account or credit buyer's account in Nedar for future orders.
Nedar will not reimburse or pay for unexpected costs or expenses, including without limitation labor or other costs associated with removal or reinstallation of the product, even if it is ultimately deemed to be defective.
Exceptions:
1) Product had been modified by the user.
2) Product was not installed or maintained according to manual or specification accompanied.
3) Product was subject to unusual physical or electrical stress, misuse, or negligence.
4) Product was non-defective or product defect was not related to Nedar product functionality, including third- party modifications.
5) Other damages caused after receipt of product by customer.
6) If returned product is found to be non-damaged, the product will be returned to customer, at customer's expense.
7) Updated July 01, 2020

Any return without authorization of Nedar will not be accepted.

  • Application:Exhibition Hall, Hotel, Stage, Home Lighting
  • Operation Temp.:-20°c ~ +35°c
  • Input Voltage(V):AC220V-AC230V
  • Power:12W/M
  • LED Quantity:180 LED/M
  • IP Rating:IP65
  • Housing Material:PVC
  • Cutting Unit:1m
  • Beam Angle:120 Degree
  • Warranty:3 Years
  • Certification:CE,RoHS,LVD, EMC
  • HS Code:9405429000
  • Trademark:NEDAR
  • Payment Terms:L/C, T/T, D/P, Western Union, Paypal

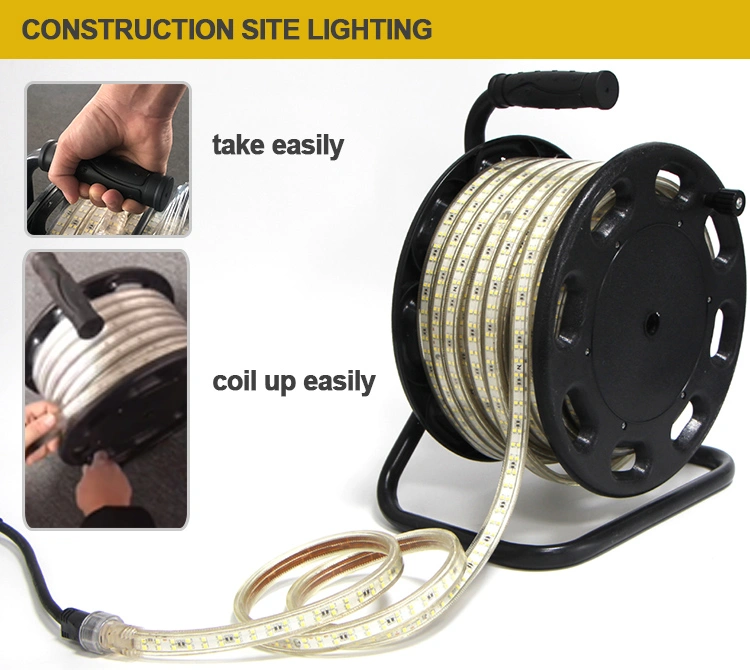

Construction Site Lighting

Building Site Lights and Lighting

Job Site Light Strip

Temporary area Lighting

Portable outdoor Lighting

Plug and play lighting and directly to AC230V

25m Powerful LED Strip
