The Hospitals Led Emergency Strip Light is great for LED fixtures with external drives. In case of power failure, the UPS emergency power supply can provide emergency lighting for connected LED lights for 2 hours under full charge, which is a perfect emergency choice.It is also small and light, making it very portable. The Hospitals Led Emergency Strip Light supports a wide voltage input of 100V-277V, making it ideal for flexible use in shopping centers, hospitals, schoolsand other public buildings. The Hospitals Led Emergency Strip Light meets European inspection standards and we are committed to providing you with a high level of quality and safety products and providing you with the best lighting effects.

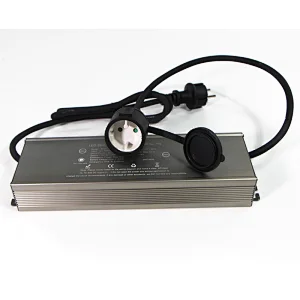

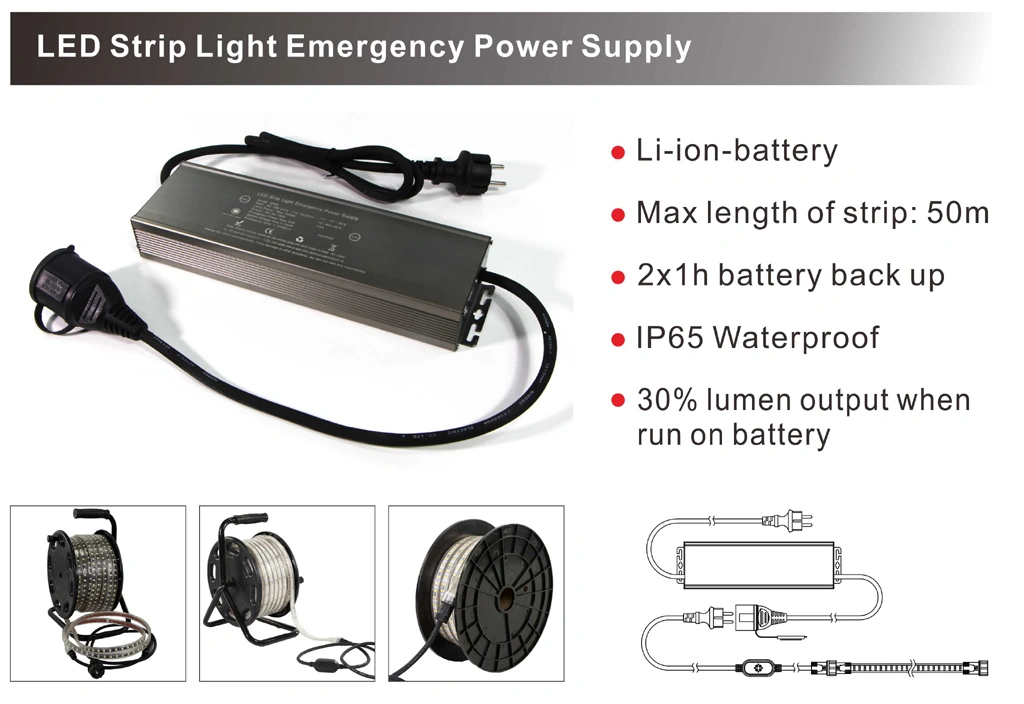

AC230V LED Strip Light Emergercy Power Supply
Model: EP01
Emergency Power Supply is widely used in different kinds of application, using with LED Strip Light is the best solution
for construction site as emergency lighting.
TECHNICAL DATA
| Model: | EP01 |
| Input Volt.: | AC100-277V ~ 50/60Hz |
| Output Volt.: | DC50-180V |
| Lamp Power: | 1500W Max. |
| Emergency Power: | 50W Max. |
| Emergency Time: | 2X60 mins |
| Battery Charge: | 24HR(Full charge) |
| Input cable: | 1.2M rubber cable 2X1.5mm2 |
| Output cable: | 0.5M rubber cable 2X1.5mm2 |
| Ta.: | -10~ 50 oC |
| Tc.: | Max. 60 oC |
| IP Grade | IP65 |
| Warranty: | 2 Years |
Product features
- Output voltage will be 175V when emergency function starts working.
- LED brightness will be decreased 70% when emergency function starts working.
- Emergency power is 50W as maximum.
- Starting emergency power is 20W as minimum.
- Emergency time is 60 mins within reasonable power range and reasonable strip length ( 2~50 meters ).
- Power supply will stop working after 60 mins at emergency time, if start electricity again, it will be one more 60 mins.
- When charging battery, indicator light will be green color if power charged more than 90%, less than 90% will be red.
- Press button on/off to check remaining capacity of electricity:
indicator light flashing in
1 time: 0~20% electricity
2 times: 20~40% electricity
3 times: 40~60% electricity
4 times: 60~80% electricity
5 times: above 80% electricity - Press button on/off in 3 seconds to stop emergency function.
